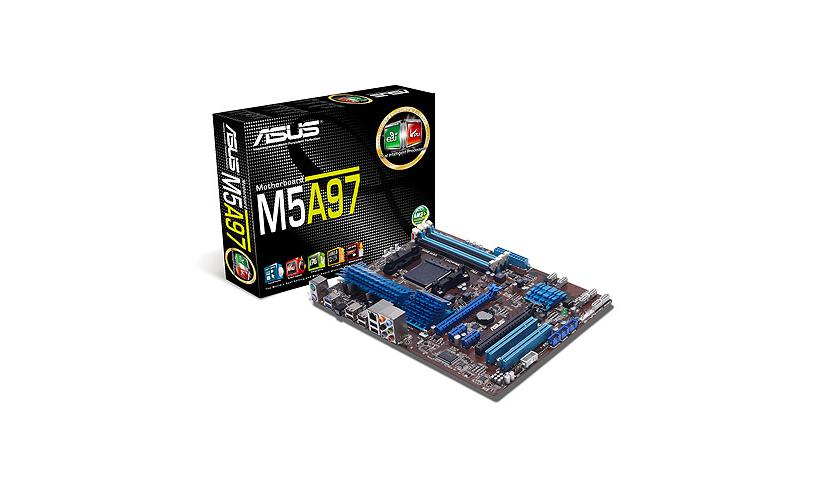

ASUS M5A97



ASUS M5A97
The Asus M5A97 supports AMD® AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 4800MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.

ATI's CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher antialiasing, anisotropic filtering, shading and texture settings. Adjust your display configurations, experiment with the 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center.

ChipsetAMD 970
RAM Slots4 x DIMM, Max. 32GB, DDR3
2133(O.C.)/1866/1600/1333/1066 MHz
Expansion Slots1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI
SATA Ports6 x SATA 6Gb/s ports
Support Raid 0, 1, 5, 10

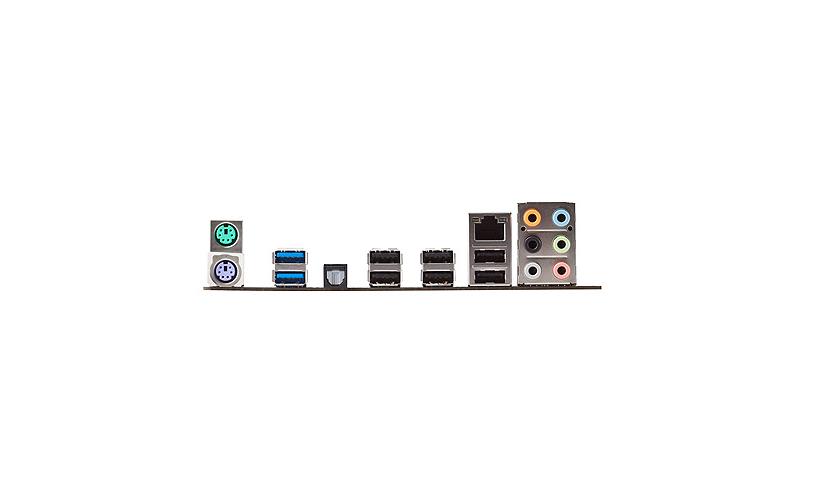

USB Ports2 x USB 3.0 ports (at back panel, blue)
12 x USB 2.0 ports (6 at back panel & 6 at mid-board)
NetworkingRealtek® 8111E Gigabit LAN Controller
AudioRealtek® ALC887 8-Channel High Definition Audio
Integrated Graphics

View Full Specification

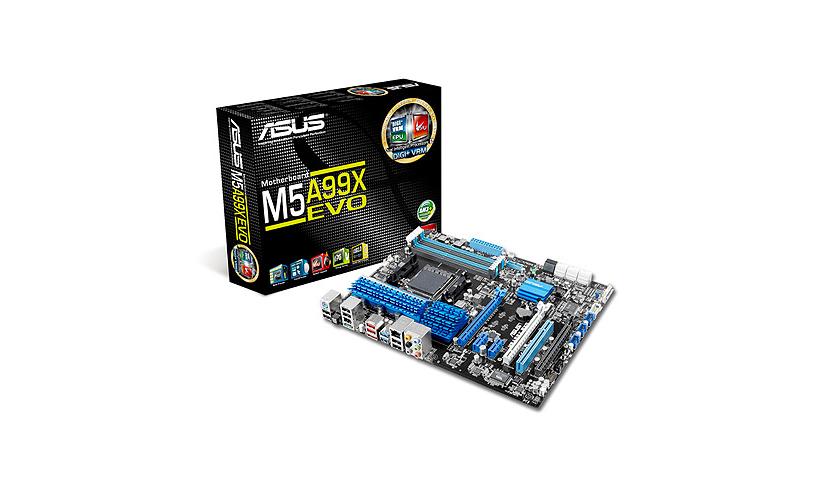

ASUS® M5A99X EVO



ASUS® M5A99X EVO
M5A99X EVO

First on AMD 990X: UEFI BIOS & Digital Power Design on AM3+ Platform

Dual Intelligent Processors 2 with DIGI+ VRM - Digital Power Design: The New Standard
UEFI BIOS (EZ Mode) - Flexible & Easy BIOS Interface
Auto Tuning - Auto System Level Up
Quad USB 3.0 & 6 x SATA 6Gb/s Support - Double Access, Double Convenience
Quad-GPU SLI and Quad-GPU CrossFireX Support!

ChipsetAMD 990X/SB950
RAM Slots4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333 MHz
Expansion Slots2 x PCIe 2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
1 x PCI
SATA Ports6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10
2 x SATA 3Gb/s port(s), black
1 x Power eSATA 3Gb/s port(s), green
1 x eSATA 3Gb/s port(s), red

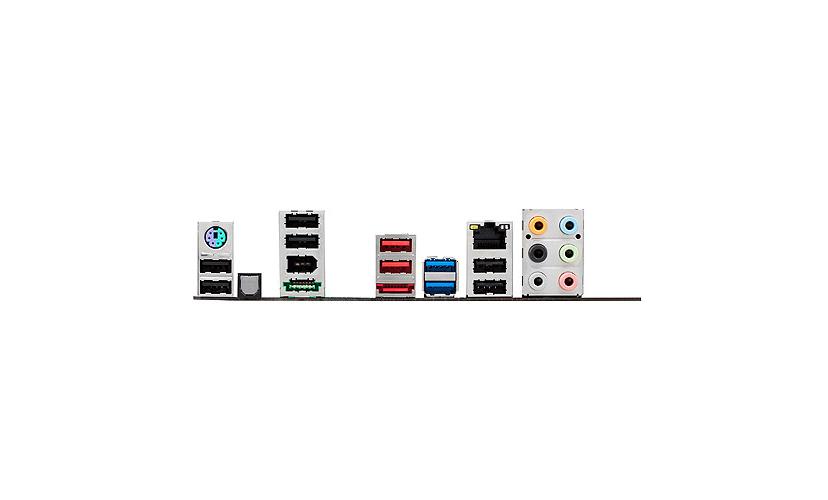

USB Ports4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board)
Networking 1 x Gigabit LAN Controller
AudioRealtek® ALC 892 8-Channel High Definition Audio
Integrated Graphics
