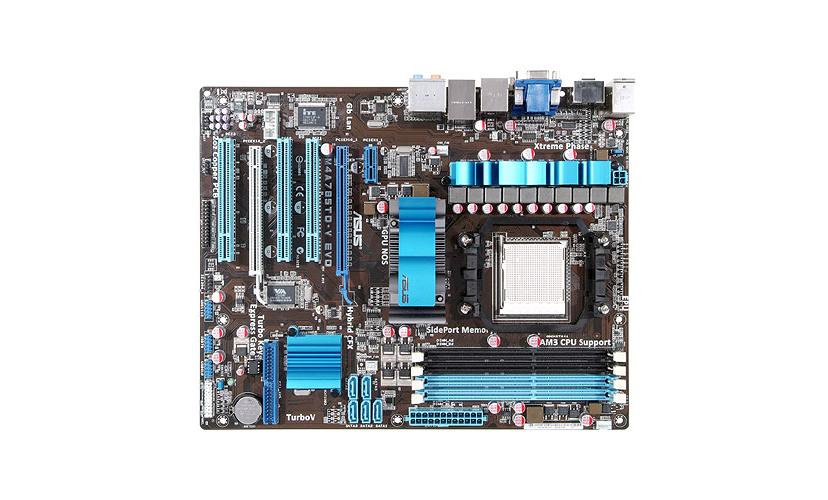

ASUS® M4A79XTD EVO
| ASUS® M4A79XTD EVO |
 This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. |
| Chipset | AMD 790X |
| RAM Slots | 4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory |
| Expansion Slots | 2 x PCIe 2.0 x16 , support ATI CrossFireX™ technology 2 x PCIe x1 2 x PCI 2.2 |
| SATA Ports | 6 xSATA 3 Gb/s ports |
| USB Ports | 12 USB 2.0/1.1 ports (4 ports at mid-board, 8 ports at back panel) |
| Networking | Realtek® 8112L Gigabit LAN |
| Audio | VIA® VT1708S 8-Channel High Definition Audio |
| Integrated Graphics |  |

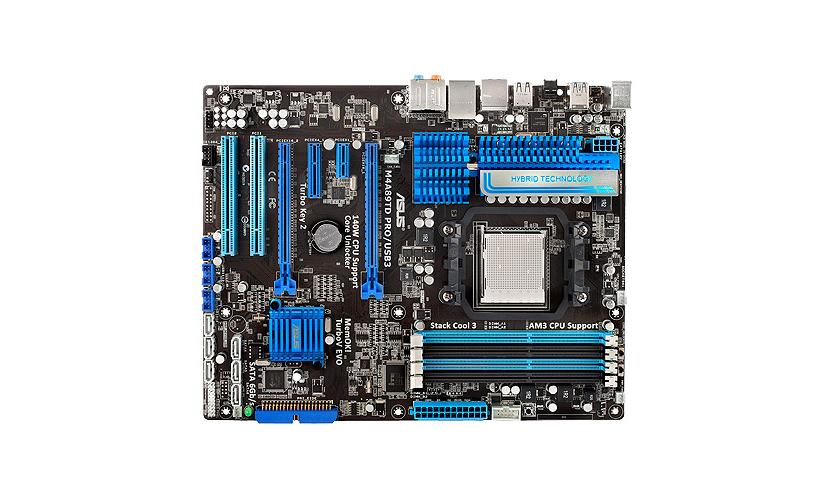

The ASUS® M4A89TD PRO/USB3 supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.

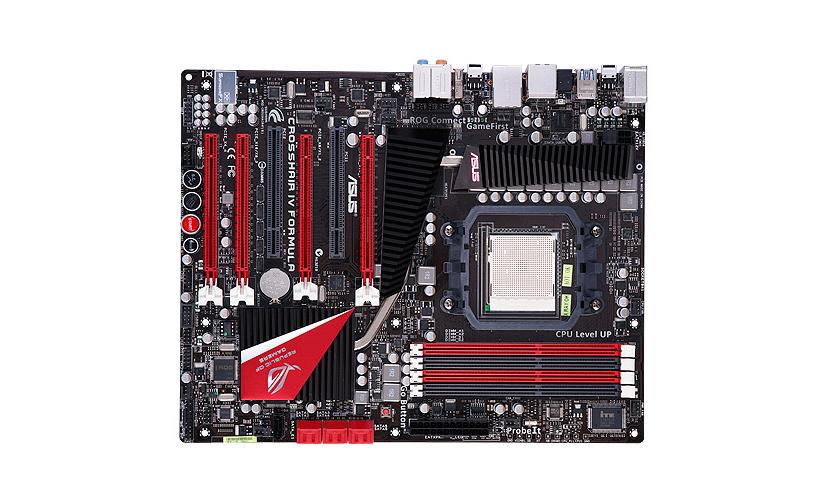

The Crosshair IV Formula deploys the latest chipset architecture from AMD, opening up the most current performance CPUs on the market. Enabling processors to come into their own is exactly what a good motherboard does, and the new Crosshair achieves this in several ways-not least ROG Connect, a built-in overclocking engine that maximizes benchmark scores by tuning and monitoring from a remote PC via USB, like a notebook. This way users can overclock while benchmarking, so all resources remain available to better performance. ROG Connect also serves as an in-depth monitoring tool-gearheads can easily obtain readings to see the effects mods such as overvolting have on their system.
