Ram OC

Ash_

VALUED CONTRIBUTOR
I'm actually laughing at your CPU mark. All my fiddling and overclocking and undervolting got me from 21400 to 22500 on my 5600X.

Then you go and post the number for your 5800X. :oops:

😭
You don’t want to know what boost clock it holds... thanks for a H150i 😜🤣


Ash_

VALUED CONTRIBUTOR
Put me out of my misery!!

Actually, tell me your CPU temp as full load and then let me guess what the answer is!
well... i'll let you see this


Ash_

VALUED CONTRIBUTOR
OK, that's just mean. :mad:

So I'm guessing ocassional 4.95-5.0 GHz single core and sustained at 4.65-4.7 GHz all core - at something in the 60's.

How'd I do?
it holds around 4.65ghz and the highest temp i have ever seen is around 65c. However, i was playing Holdfast earlier, which is very cpu heavy and it sat at 55 degrees.


NoddyPirate

VALUED CONTRIBUTOR
it holds around 4.65ghz and the highest temp i have ever seen is around 65c. However, i was playing Holdfast earlier, which is very cpu heavy and it sat at 55 degrees.
It's amazing what they've done with it. The 5600X is basically a 5800X with two cores disabled and with the power dialled right down. I wish I could find a way to unlock it all!!!

So your stock all core boost is the same as my stock single core boost! :D

And what do you see single core? I've read some momentary boosts at low temps to 4.95 but sustained about 4.80-4.85 generally - which is still 150 MHz over advertised....


NoddyPirate

VALUED CONTRIBUTOR

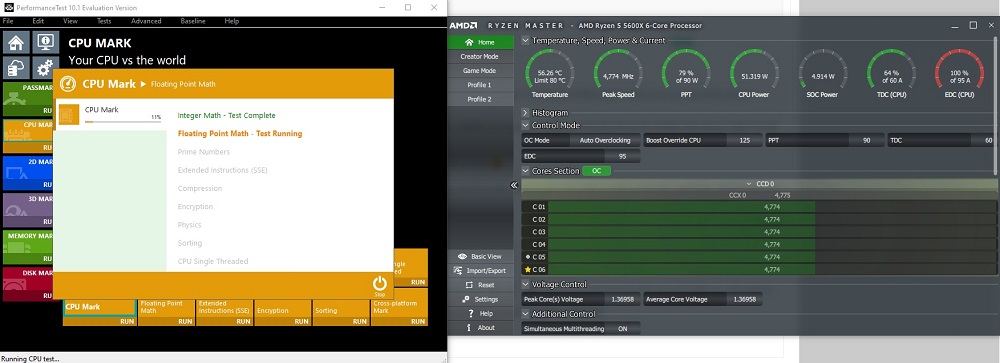

The other thing that amazes me is how different applications can push the CPU entirely differently. Here is what happens when the Perf Test runs it's integer and floating point tests with my Overclock in place....4.775 on all cores.....
Max all core.jpg


Ash_

VALUED CONTRIBUTOR
It's amazing what they've done with it. The 5600X is basically a 5800X with two cores disabled and with the power dialled right down. I wish I could find a way to unlock it all!!!

So your stock all core boost is the same as my stock single core boost! :D

And what do you see single core? I've read some momentary boosts at low temps to 4.95 but sustained about 4.80-4.85 generally - which is still 150 MHz over advertised....
i believe 4.95 single core


FerrariVie

MOST VALUED CONTRIBUTOR
Super. That makes sense.

It would be inetersting to see the difference from stock to OC for myself, and others too I guess - if you don't mind posting them whenever you get around to it?

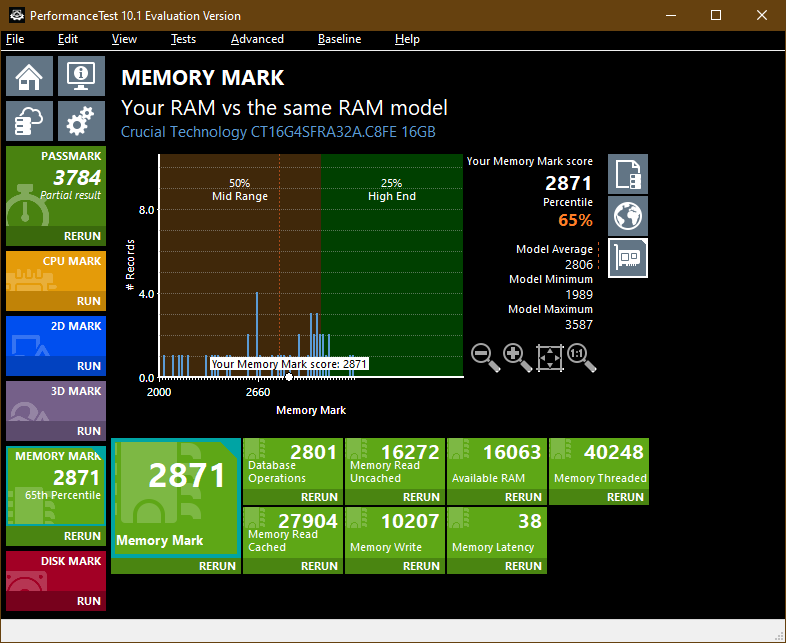

There you are, 3200Mhz CL22 is about what I expected:


In summary, 9.5% increase in RAM performance (according to Passmark) from 3200 CL22 to 3600 CL20 at same 1.2 stock voltage.


NoddyPirate

VALUED CONTRIBUTOR
There you are, 3200Mhz CL22 is about what I expected:
View attachment 25347

In summary, 9.5% increase in RAM performance (according to Passmark) from 3200 CL22 to 3600 CL20 at same 1.2 stock voltage.
That's great. It really good to be able to validate the improvement with an Overclock. Yours looks great. Aplogies for the curveball with my query as I didn't spot that it was laptop vs desktop. Still it's very interesting to see.

Your biggest boost seems to be in read and write speeds - which shows the raw help of higher bandwidth. Interesting stuff.


NoddyPirate

VALUED CONTRIBUTOR
I’m not sure why your CL22 has a lower latency rating, than my CL15 🤨😅
There's a lot more than meets the eye when it comes to latency I think. The PassMark score is testing the latency from read request until the data gets all the way back to the CPU register - not just when it's available at the RAM itself - so there may be variance and smoke and mirrors going on in there somehwere.....


FerrariVie

MOST VALUED CONTRIBUTOR
I’m not sure why your CL22 has a lower latency rating, than my CL15 🤨😅
That is indeed weird, but it could have something to do with different architectures (Zen2 x Zen3)?

That's great. It really good to be able to validate the improvement with an Overclock. Yours looks great. Aplogies for the curveball with my query as I didn't spot that it was laptop vs desktop. Still it's very interesting to see.

Your biggest boost seems to be in read and write speeds - which shows the raw help of higher bandwidth. Interesting stuff.
No problem at all! I also got curious to see the difference and finally had a way to measure the improvements (y)

I tried pushing it further to 3666Mhz CL20 and while it boots, the system got really unstable with green SODs every few minutes. Maybe reducing some timings might make it become stable? But it's going to be a few weeks until I have time to play with it again. 3600 CL20 is rock solid though.


Ash_

VALUED CONTRIBUTOR
I upped my speeds to 3800mhz @ cl15 and such a performance drop vs 3600 @ cl15. I think i am clocked as high as possible


FerrariVie

MOST VALUED CONTRIBUTOR
I upped my speeds to 3800mhz @ cl15 and such a performance drop vs 3600 @ cl15. I think i am clocked as high as possible
If I'm not wrong, at 3800 you loose the 1:1 clock mode to the CPU, so that why you're probably getting worse results. To keep 1:1, the farther you should go is 3733 to still get better results than with 3600.


NoddyPirate

VALUED CONTRIBUTOR
Damn you @Ash_ !!!! Your scores yesterday wouldn't let me sleep last night, so I had to go fiddling more today.

Turned the Single Core Boost down a bit so I could undervolt as much as possible and managed this - 130 points up on yesterday.

CPU OC CO 30.jpg


All cores fully loaded with power draw at my limits and a consistent frequency at really low voltage. About as much as I can squeeze out of this CPU I think while staying at in the 60's temp wise! It's no 5800X but it's as close as I can get for now! :D

CO 30 Neg 75 Boost.jpg


Ash_

VALUED CONTRIBUTOR
Damn you @Ash_ !!!! Your scores yesterday wouldn't let me sleep last night, so I had to go fiddling more today.

Turned the Single Core Boost down a bit so I could undervolt as much as possible and managed this - 130 points up on yesterday.

View attachment 25399

All cores fully loaded with power draw at my limits and a consistent frequency at really low voltage. About as much as I can squeeze out of this CPU I think while staying at in the 60's temp wise! It's no 5800X but it's as close as I can get for now! :D

View attachment 25402
I tried DLSS on cod today and wow... had a locked 220fps from my 3070
